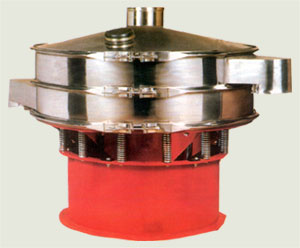

Gyroscreen / Vibroscreen

Major User Industries

Animal Feed Ceramic
Chemical Effluent & Waste water treatment
Food & Beverages Loundries
Metal Working Mineral Processing
Petroleum Pharmaceutical
Paper & Pulp Paint & Pigment
Sugar & Syrup Sand & Gravel

Applications

Dry Separation
Separation of different sizes of particles.
Dry Classification
Precise division of a dry material into sized fractions
Solids/Liquids Separation
Dewatering and removal of solid particles from Liquid medium.

Advantages

Low power consumption
Low Maintenance
Low space requirements
No special foundation required
Superior separation efficiency
Can be provided 7 Decks
Complete dust free and noiseless

Principle

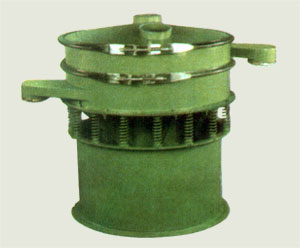

Vibro Energy Separator is a rigid screening device that vibrates about its centre of mass. The central vertical axis of the screen assembly and the motor shaft axis being the same, vibration is accomplished by placing eccentric weights on the upper and lower ends of the motor shaft. Adjustment of the quantum and relative position of the top and bottom weights permits control of amplitude and material flow patterns as above.

Model O.D. mm
(inch)
Motor HP
(kw)
A
mm
(inch)
B
mm
(inch)
C
mm
(inch)
D
mm
(inch)
E
mm
(inch)
J
mm
(inch)
K
mm
(inch)
P
mm
(inch)
N
mm
(inch)
G
mm
(inch)
H
mm
(inch)
BK 18 457
18
0.25
0.19
375
14.8
458
18.0
541
21.3
624
24.6
707
27.8
797
31.2
140
5.5
100
3.9
435
17.1
630
24.8
714
28.1
BK 24 610
24
0.5
0.37
400
15.7
511
21.1
622
24.5
733
28.9
844
33.2
965
38.0
110
4.3
152
6.0
508
20.0
743
29.2
854
33.6
BK 30 813
32
0.5
0.37
420
16.5
580
22.8
740
29.1
900
35.4
1060
41.4
1240
48.9
138
5.4
152
6.0
600
23.6
920
36.2
1080
42.5
BK 48 1219
48
1.5
1.1
640
25.2
805
13.7
970
38.2
1135
44.7
1300
51.2
1505
59.2
210
8.3
203
8.0
920
36.2
1175
46.2
1340
52.7
BK 60 1524
60
2.0/2.5
1.5/1.9
660
26.0
872
34.3
1084
42.7
1296
51.0
1508
59.4
1746
59.4
250
9.8
203
8.0
1085
42.7
1322
52.0
1534
60.4
BK 72 18.29
72
2/5.0
1.5/3.7
690
27.16
925
36.4
1160
45.7
1395
54.9
1630
64.2
1885
74.2
315
12.4
254
10.0
1265
49.8
1415
55.7
1650
65.0
Dimensions are reference only & are subject to change without notice.
The above are standard equipments. Specifications for specially designed Vibro Screens for specific industries can be given on request.
